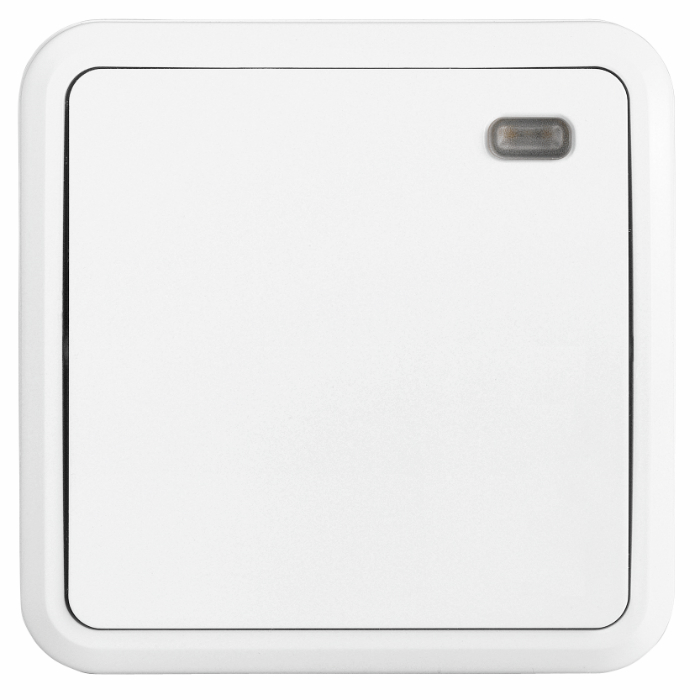

JA-188J wireless panic button
The RC-188J is mainly used as a wireless panic or emergency button. It is designed to be a remote control for setting/unsetting an alarm system or remotely controlling other appliances.
It provides tamper contacts and monitors the voltage of its battery.
The system reaction to button activation is optional. The basic reaction is a panic alarm or setting/unsetting the system (selectable).
Other reactions can be chosen in control panel service mode.
Power | LS14250 lithium battery (3.6V ½ AA / 1.2 Ah) Please note: Battery is not included |
---|---|
Typical battery life | about 3 years (20 activations/day) |
Communication band | 868.1 MHz, Jablotron protocol |
Communication range | 300m (open area) |
Dimensions, weight | 80 x 80 x 29 mm, 60g |
Environment according to EN 50131-1 | II. general indoor |
Operating temperature range | -10 to + 40 ° C |
Classification according to | EN 50131-1, EN 50131-5-3, EN 50134-2 Grade 2 |
Complies with | ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1 |
Can be operated to | ERC REC 70-03 |
